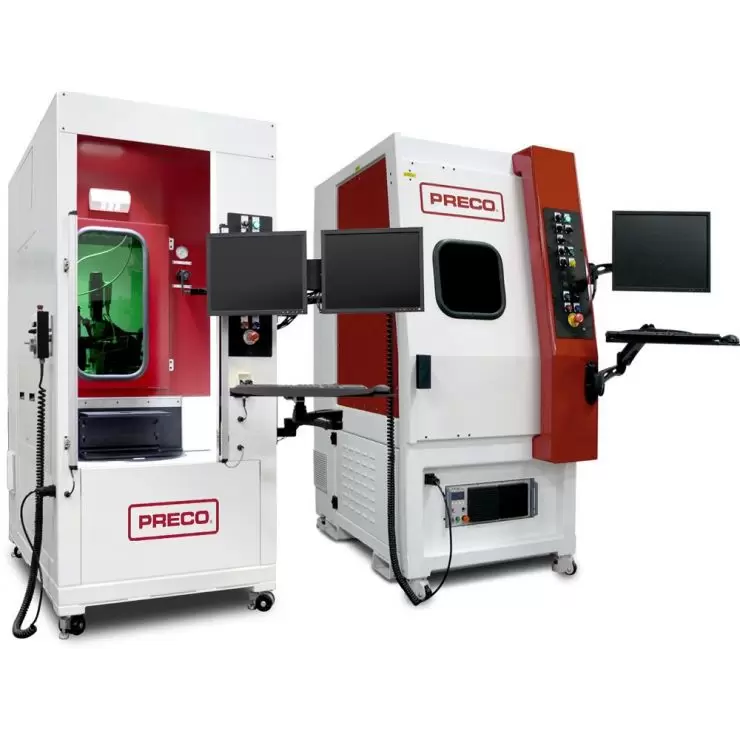

ST Series
Multi-Axis Laser Processing Machines
These workstations are designed for multi-axis laser welding, heat treating, cladding, drilling and cutting of metallic components.
Fast Flat Sheet Processing

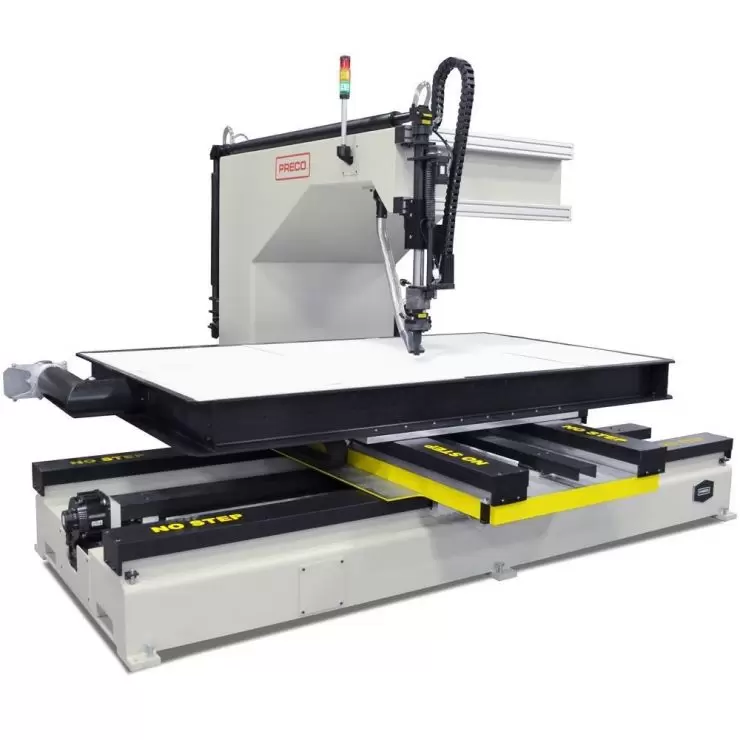

Preco's SL8000 series standard products are fixed beam, PC based, three-axis laser systems tooled and ready for processing sheet plastics, wood, thin metals or composite products. This industry-proven machine tool is extremely robust for high volume runs and job shop services, yet designed as a very flexible laser platform so it can easily be used for prototyping or short runs.
Applications
- Gaskets
- Steel Rule Die Boards
- Membrane Switches
- Plastic Fabricators
- Point of Purchase
- Signage
- Wood and Veneer Products
- Composites
Laser-focused accuracy.
The SL8000 series systems are designed to precisely and automatically ramp the laser power levels in coordination with the motion system. This provides extremely accurate square corners and detailed features. Preco's high-quality laser beam control allows you to start your cutting program right on the cut line without the "peck through" flaw typical of other systems.
Preco's SL8000 is the ideal laser system for flat sheet processing applications that require a vacuum hold down, large motion area, smooth yet fast positioning motion, high processing resolution and consistent beam quality over the full range of the motion system.
MATERIALS
- Sheet Plastics
- Sheet Metals
- Stainless
- CRS
- Aluminum
- Titanium
- Platinum
- Metal Matrix Composites
- Wood Products
CAPABILITIES
- Laser Ablation
- Laser Cutting
- Laser Drilling
- Laser Scribing
- Laser Heat Treating
Features & Benefits
Just some of the many benefits of buying a Preco laser machine.
Vision System
Automatic registration with single or dual cameras for X-Y-Θ positioning of the cut pattern to a specific mark or visual material features
Vacuum Hold Down
Vacuum sheet hold down provides excellent positional stability during processing, does not mark or scratch sheet allows for management and handling of vaporized outgas produced by laser cutting
XY Table
DC servo motors are driven on a high speed, low mass two-axis motion system for accurate processing of large sheet products
Fixed Beam Moving XY Table
Symmetrical and consistent laser beam cutting and scribing quality over the full range of the motion system
PC Windows® Based Controller
User-friendly Windows-based PC based controller includes management of laser parameters, processing database and cycle time management
XY Motion System and Screw Protection
The robust metal channel covers to provide protection of the motion system rails and screws
Tech Specs
Technical parameters are based on a baseline standard but all Preco laser machines can be customized to meet your product's needs.
| XY Range of Motion | The effective range of motion and size of work support system 1.27 m x 1.27 m (50 in. by 50 in.) Work support 1.32 m x 1.32 m (52 in. by 52 in.) 1.27 m x 2.49 m (50 in. by 98 in.) Work support 1.32 m x 2.54 m (52 in. by 100 in.) 1.52 m x 2.49 m (60 in. by 98 in.) Work support 1.57 m x 2.54 m (62 in. by 100 in.) 1.52 m x 3.10 m (60 in. by 122 in.) Work support 1.57 m x 3.15 m (62 in. by 124 in.) |
|
| Processing Speed | Contour processing speeds up to 10.16 m/min (400 in./min) Traverse and straight-line speed up to 20.32 m/min (800 in./min) |
|
| Payload Capacity | Up to 454 kg (1000 lb.) | |
| Z-axis | Range of motion 0 mm to 305 mm (0 in. to 12 in.) Manual and programmable and non-contact options |
|

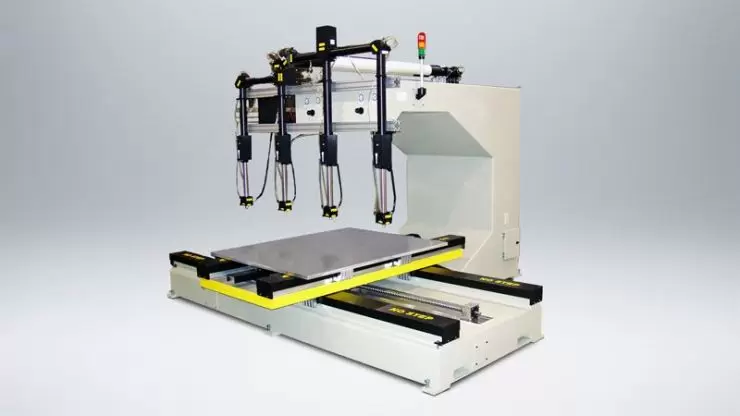

| System Output Laser Beam Choices | Single beam (1) Dual-beam (2), fixed with 0 to 50% laser power per side or optional switch for 0 to 50% to each beam or 0 to 100% to one beam Four beams (4), fixed with 0 to 50% laser power per side or optional switch for 0 to 50% to each beam or 0 to 100% to one beam |
|
| Laser | CO2 laser operating at 10.6 micron wavelength. Power level options in watts: 400, 1000, 1500, 2000, and 2500 Single beam and dual beam outputs Two year part warranty Air to water chiller Pulsed or continuous wave beam output |
|
