Automated Traveling Head
The EDP-W automated traveling head system represents the highest automated system which allows converters to die cut various types of materials and desired shapes. The feeding of material is automatic and is managed by a transportation conveyor running together with a pinch and grab system.
Options
- Different cutting tonnage
- Cutting head rotating on its axis 180°
- Automatic die change
- Unwinders for jumbo rolls
- Automatic stacking system
- Waste winder
Wide range of possibilities.
This machine can handle materials with a wide range of weights and different thicknesses which can be processed in multiple layers. The EDP-W has a wide range of configurable cutting forces and cutting head surfaces allowing converters to take on a wide range of applications.
Foam Die Cutting
Learn more about Preco's foam die cutting machines designed and built for the foam die cutting and converting industry.

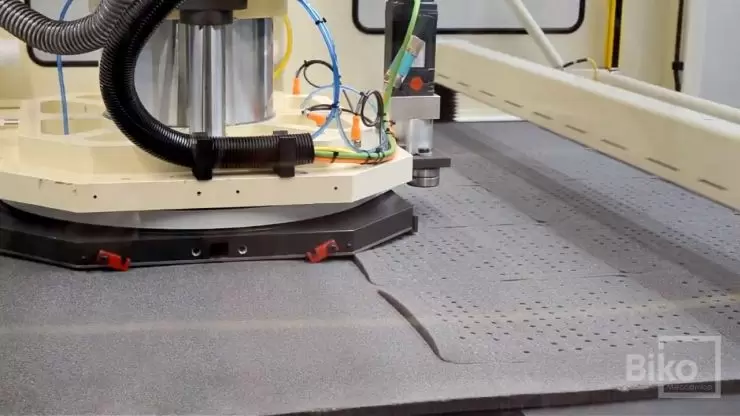

Slug holes are automatically collected and vacuumed away from the cutting tool.
MATERIALS
- Foams
- Cork
- Paper
- Cloth and Non-Wovens
- Plastic / Polymer Films
- Adhesive Laminates
- Soft Metals & Foils
CAPABILITIES
- Kiss-Cutting
- Through-Cutting
Features & Benefits
Just some of the many benefits of buying an EDP-W Automated Traveling Head Die Cutter.
Electrical Machine
No hydraulic system involved
Oscillating Board on X-Y Axis
Cutting against dedicated conveyor belt or on counter board
Dedicated Software
Manages the whole process and a touch screen allows the operator to change all settings
Simple Control Software
Organizes recipes and is easy to recall
Multiple Layer Processing
Capable of cutting more than one web layer at the same time
Touch Screen
Gives the possibility to optimize the position of the cutting footprints so as to minimize waste material as much as possible
Material-Fed System
Via pinch and grab bar with motorized conveyor
Punching System
Mounted on traveling head covering the whole board width
Accurate Tool Positioning
Head displacement by servo motor for accurate cutting tool position
Tech Specs
Technical parameters are based on a baseline standard but all EDP-W Automated Traveling Head Die Cutting systems can be customized to meet your product's needs.
| EDP-W-1650 | EDP-W-2050 | |
| Machine Dimensions | Length: 5287 mm (17 ft. 4 in.) | Length: 5287 mm (17 ft. 4 in.) |
| Width: 4165.5 mm (13 ft. 8 in.) | Width: 4565.5 mm (15 ft.) | |
| Height: 2902 mm (9 ft. 6 in.) | Height: 2902 (9 ft. 6in.) | |
| Machine Weight | 9,000 kg (9.92 tons) | 10,500 kg (11.57 tons) |
| Material Widths | 1650 mm (64.96 in.) | 2050 mm (80.71 in.) |
| Installed Power | 18 kW | |
| Air Consumption | 200 NI/h | |
| Cutting Force | 25 tonnes (27.56 tons) (45 and 60 tonnes available(49.6 tons and 66.14 tons)) | |
| Cutting Tool Mounting Board | 600 x 600 mm (23.62 x 23.62 in.) (1000 x 1000 mm (39.37 x 39.37 in.) also available) | |
Flat Bed Die Cutting Equipment Line
Flat Bed Die Cutter with Optics
Four-Post Hydraulic Flat Bed Press
This four-post flat bed system has flexible optics that you can select from X, X–Y, X-Y-θ options to assure consistent optical registration.
Servo Press Flat Bed Die Cutter
Four-Post Electromechanical Flat Bed Press
This electromechanical machine is designed primarily for die cutting components in a clean environment.
EDP-W Press Machine
Automated Traveling Head Die Cutter
Servo-driven traveling head press represents the highest automated system allowing converters to die cut various materials and shapes.
