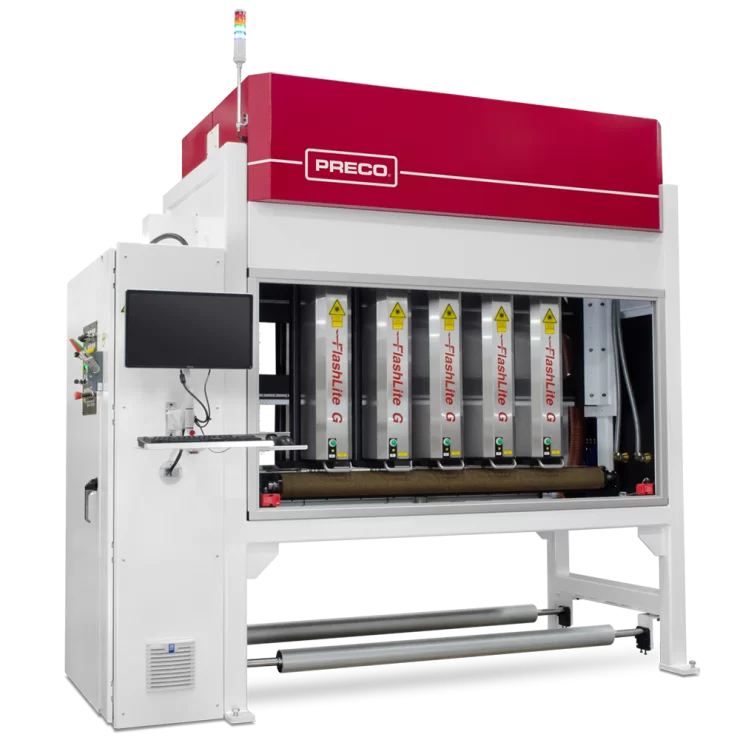

ZonePro Series
Small Area Laser Processing Machine
The ZonePro series has the ability to add scoring or perforating features within a defined width or "zone" across the flexible packaging material.
Compact Design and Unparalleled Flexibility
Preco offers a complete line of laser modules in a compact and economical configuration called FlashLite™ laser modules. FlashLite laser modules can be integrated over any existing production line, they can also be added to existing material handling structures or a Preco support frame can be included as part of the cost-effective complete laser package. Processing with these modules is based on distance or in registration and they operate in either on-the-fly or intermittent motion.

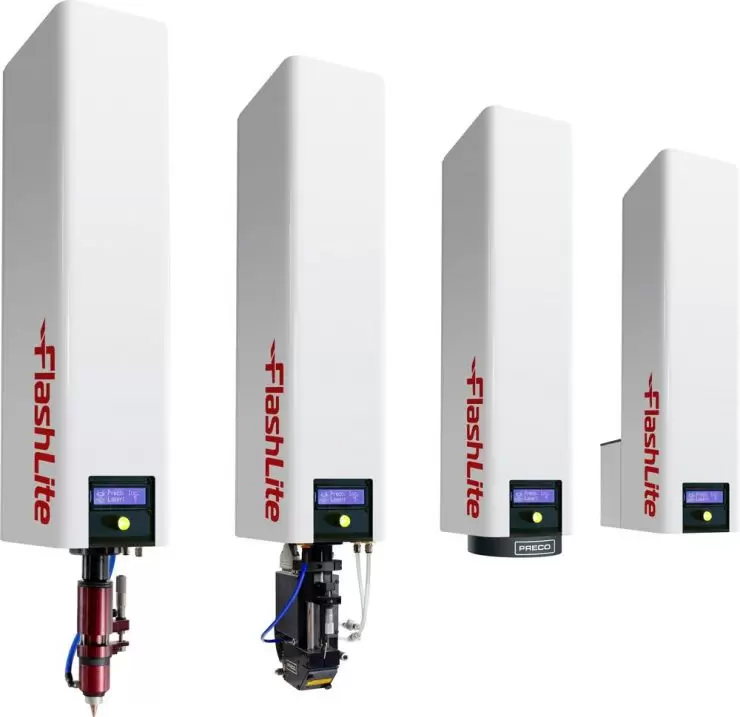

FlashLite Module Configurations
- FlashLite Web Direction (WD) Fixed head
- FlashLite Web Direction (WD) Fixed head w/Beam Compression
- FlashLite ZonePro (ZP) Two-axis focusing head
- FlashLite Cross Web (CW) Three-axis focusing head
Multiple modules for maximum efficiency.
The FlashLite modules are available in a variety of configurations, including our FlashLite Web Direction (WD) with fixed beam output heads for easy-tear applications, FlashLite WD with beam compression output heads for high-speed micro-perforating, FlashLite ZonePro (ZP) with two-axis focusing heads for laser processing in a narrow bad or width and our FlashLite Cross Web (CW) for shape scoring & cutting processes.
|
|
|
|
PROCESS CAPABILITIES
| Scoring/Scribing | ✓ | ✓ | ✓ | ✓ |
| Perforating | ✓ | ✓ | ✓ | ✓ |
| Venting | ✓ | ✓ | ✓ | ✓ |
| Shape Scoring | — | — | ✓ | ✓ |
| Contour Scoring | — | — | ✓ | ✓ |
| Window Cutting | — | — | ✓ | ✓ |
TECH SPECS
| Laser Power (Watts) | Up to 400 | Up to 200 | Up to 400 | Up to 1,000 |
| Perforating Hole Diameter | 65 to 200 μm | 65 to 200 μm | 90+ μm | 250+ μm |
| Scoring/Scribing (fpm) | Up to 2,500 | Up to 2,500 | Up to 2,500 | Up to 2,500 |
| Venting (fpm) | Up to 750 | Up to 1,500 | Up to 1,500 | Up to 1,500 |
| Perforating (fpm) | Up to 150 | Up to 2,500 | Up to 1,200 | Up to 750 |
| Contour Scoring (fpm) | — | — | Up to 2,000 | Up to 2,000 |
| Shape Scoring (fpm) | — | — | Up to 2,000 | Up to 2,000 |
| Window Cutting (fpm) | — | — | Up to 1,000 | Up to 1,000 |
The above data is subject to change. All specifications are dependent on laser power, material type and thickness, and process platform - consult with a Preco associate.
Preco's patented beam compression technology is used to produce consistent geometric-shaped holes at processing speeds up to 2500 ft./min. This is the fastest perforating head in the industry.
MATERIALS
- Plastic Films
- Polyester
- Polyethylene
- Polypropylene
- EVOH
- Nylon
- Laminations
- Foils
- PLA
CAPABILITIES
- Laser Scoring
- Laser Micro-Perforating
- Laser Slitting
- Laser Slit/Scoring
Features & Benefits
Just some of the many benefits of buying Preco FlashLite laser modules.
Web Encoder
Provides web position and velocity feedbacks
AcuBeam™ Software
Proprietary software for laser processing shapes and patterns
Recipe Storage
Loading and saving laser parameters for quick setups and consistent production runs
Closed-Loop Power Control
Regulates laser power instability, compensates for laser power degradation, uses pulse detection monitoring and scoring – laser off alarm
Eye-Spot Detector
Register laser processing to print features
Patented AcuPower Control
Provides uniform scoring independent of shape and processing speeds
Easy Integration
I/O available for seamless interface to existing production lines
I/O Diagnostics Capability
Software updates and service support
Windows-based User Interface
Controls laser operation, beam steering, laser parameters and diagnostics
Open-Loop Power Control
Regulates the laser power based on web velocity
Laser Equipment Line for Flexible Packaging

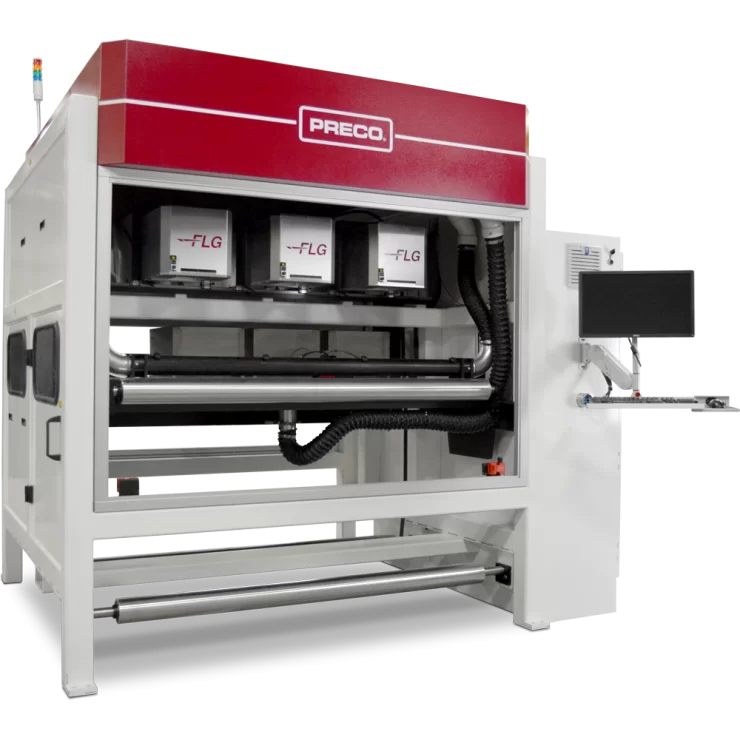

Cross Web Series
Large Area Laser Processing Machine
The Cross Web Series was designed to laser perforate, score and cut shapes or lines on-the-fly across the web.

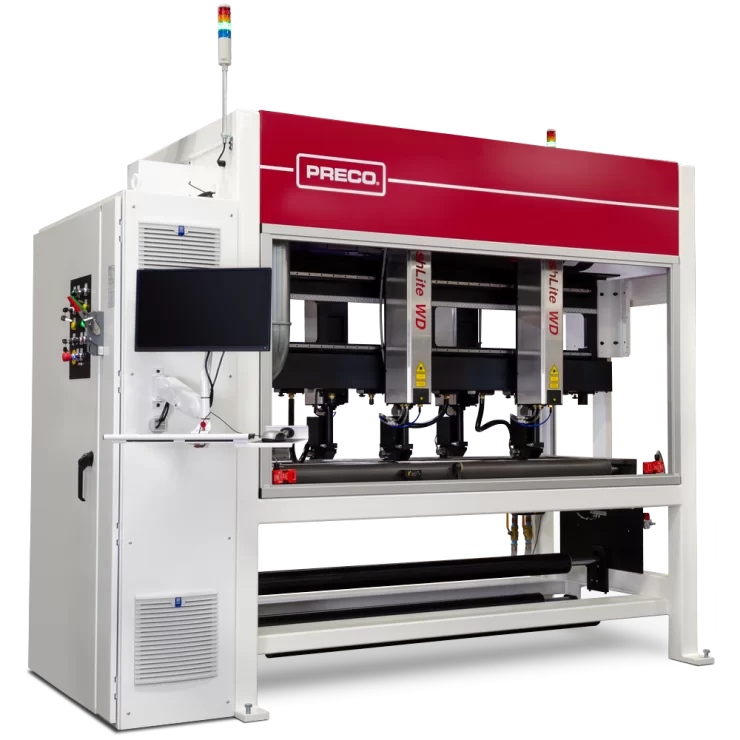

Web Direction Series
